Kustomize and Helm Charts
Kustomize and Helm
Why Both Exist — The YAML Sprawl Problem
Kubernetes promises declarative infrastructure — but YAML sprawl is the hidden cost most teams discover too late.
As applications grow, so do:
- Environment-specific configs (dev vs staging vs prod)
- Repeated manifests across services
- Subtle differences between clusters
- Risky manual edits that cause drift
The naive solution — copy deployment.yaml into deployment-dev.yaml, deployment-staging.yaml, deployment-prod.yaml — works until it doesn’t. One fix applied to dev gets forgotten in prod. A label change gets made in two of three files. Six months later, nobody knows what’s canonical.
Kustomize and Helm emerged to solve different parts of the same problem: how to manage Kubernetes configuration cleanly, safely, and at scale.
- Kustomize answers: “How do I customize existing manifests for different environments without duplicating YAML?”
- Helm answers: “How do I package, version, configure, and distribute a Kubernetes application?”
Kustomize — Native Configuration Customization
Kustomize is built into kubectl (kubectl apply -k). No installation needed. No new language. Your YAML stays valid Kubernetes YAML throughout.

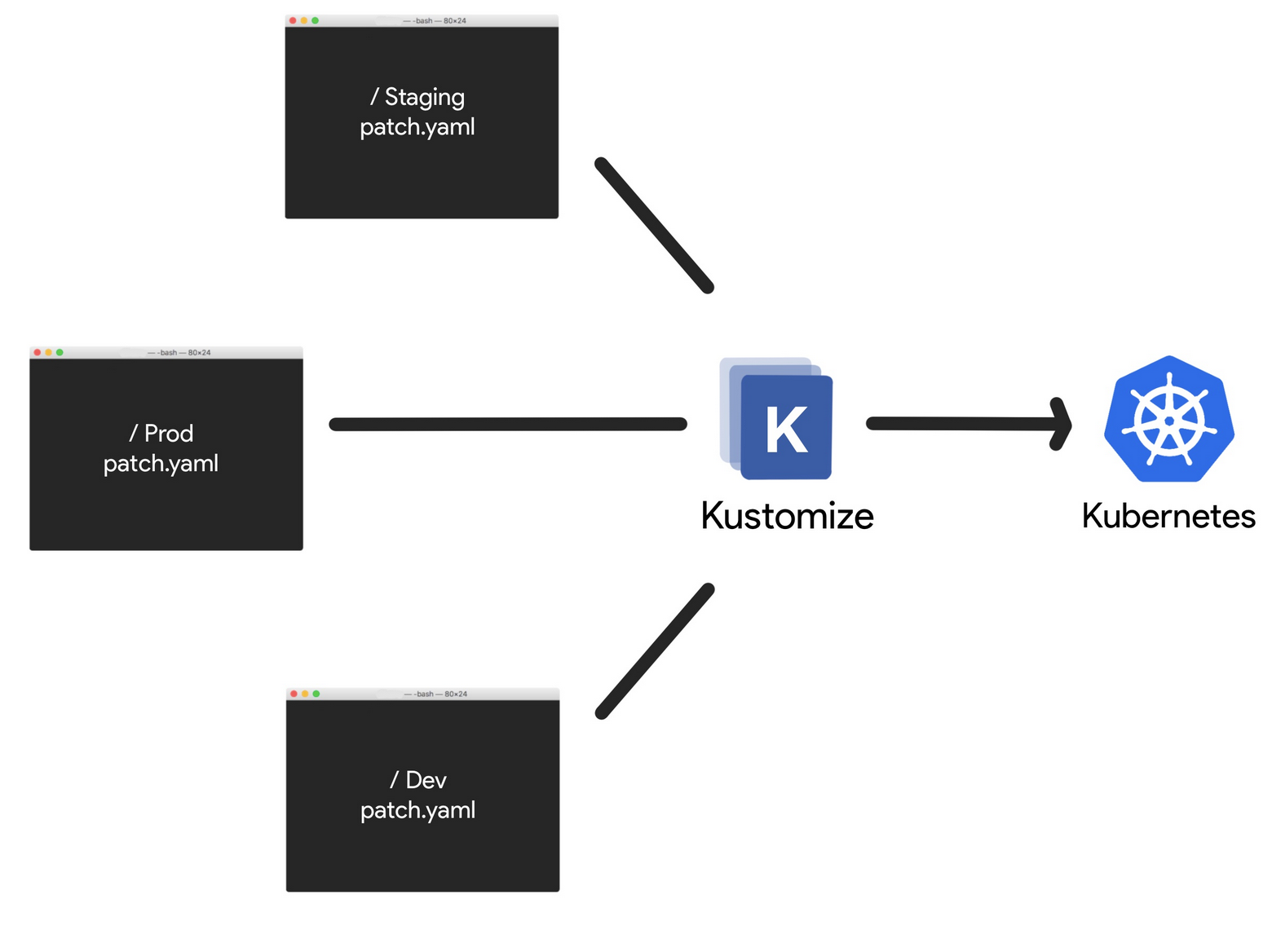

The Base/Overlay Model
Kustomize is built on two concepts:
Base — the common, reusable manifests. Represents the application in its default form. Not environment-specific.
Overlay — environment-specific changes layered on top of the base. Only contains what’s different.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
k8s/
├── base/
│ ├── kustomization.yaml
│ ├── deployment.yaml
│ └── service.yaml
├── overlays/
│ ├── dev/
│ │ ├── kustomization.yaml
│ │ └── patch-replicas.yaml
│ ├── staging/
│ │ └── kustomization.yaml
│ └── prod/
│ ├── kustomization.yaml
│ └── patch-replicas.yaml
The base kustomization.yaml lists the resources:
1
2
3
4
5
6
# base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- deployment.yaml
- service.yaml
The overlay kustomization.yaml references the base and adds changes:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# overlays/prod/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- ../../base # point to base
namePrefix: prod- # all resources get this prefix
namespace: production # inject namespace
images:
- name: my-app
newTag: v1.4.2 # override image tag without touching deployment.yaml
replicas:
- name: my-app
count: 5 # override replica count
patches:
- path: patch-replicas.yaml
Apply it:
1
2
3
kubectl apply -k overlays/prod/ # native kubectl support
kubectl diff -k overlays/prod/ # preview changes before applying
kustomize build overlays/prod/ # print rendered YAML without applying
Patch Types
Kustomize supports two patch formats:
Strategic Merge Patch — looks like a partial Kubernetes manifest. Kubernetes knows the structure and merges intelligently (lists are merged by key, not replaced).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# patch-resources.yaml — strategic merge patch
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-app
spec:
replicas: 5
template:
spec:
containers:
- name: my-app # identifies which container to patch
resources:
limits:
memory: "1Gi"
JSON 6902 Patch — explicit operations (add, replace, remove) on specific paths. More surgical, more verbose.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# kustomization.yaml
patches:
- target:
kind: Deployment
name: my-app
patch: |-
- op: replace
path: /spec/replicas
value: 5
- op: add
path: /spec/template/spec/containers/0/env/-
value:
name: ENV
value: production
Use strategic merge for most cases — it’s more readable. Use JSON 6902 when you need to remove a field or patch a specific list item.
Common Transformations
Beyond patches, Kustomize has built-in transformers:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# Add prefix/suffix to all resource names
namePrefix: prod-
nameSuffix: -v2
# Add labels to all resources
commonLabels:
env: production
team: platform
# Add annotations to all resources
commonAnnotations:
managed-by: kustomize
# Override image tags across all deployments
images:
- name: my-app
newName: gcr.io/my-project/my-app # optional: change registry too
newTag: abc1234
# Override replica counts
replicas:
- name: my-app
count: 5
Why Kustomize Fits GitOps
In a GitOps workflow (ArgoCD, Flux), the Git repo is the source of truth. Kustomize fits naturally:
- Base manifests are reviewed and stable
- Overlay changes are small diffs — easy to review in PRs
- No external tooling needed in the CD pipeline — ArgoCD and Flux support Kustomize natively
- Output is always deterministic — same input always produces same YAML
Helm — Application Packaging for Kubernetes
Helm is a package manager for Kubernetes. It treats a Kubernetes application as a versioned, installable package — similar to how apt or brew treats software.
If Kustomize is about patching YAML, Helm is about generating YAML from templates and managing the full lifecycle of a release.
Chart Structure
A Helm chart is a directory with a specific layout:
1
2
3
4
5
6
7
8
9
10
my-app/
├── Chart.yaml # chart metadata — name, version, description
├── values.yaml # default input values
├── templates/ # Go-templated Kubernetes manifests
│ ├── deployment.yaml
│ ├── service.yaml
│ ├── ingress.yaml
│ ├── _helpers.tpl # reusable template fragments (partials)
│ └── NOTES.txt # printed to user after install
└── charts/ # dependencies (sub-charts)
Chart.yaml — metadata about the chart:
1
2
3
4
5
apiVersion: v2
name: my-app
description: My application
version: 1.2.0 # chart version — increment when chart changes
appVersion: "2.4.1" # version of the app being packaged
values.yaml — default values. Users override these at install time:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
replicaCount: 2
image:
repository: my-app
tag: "latest"
pullPolicy: IfNotPresent
service:
type: ClusterIP
port: 80
ingress:
enabled: false
host: ""
resources:
requests:
cpu: 100m
memory: 128Mi
Templating Basics
Templates are standard Kubernetes YAML with Go template directives:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: -my-app # release name injected
labels:
app:
version:
spec:
replicas: # from values.yaml
template:
spec:
containers:
- name: my-app
image: ":" # conditional block
resources:
Key template objects:
| Object | What it contains |
|---|---|
.Values |
Values from values.yaml and overrides |
.Release.Name |
Name of the release (set at install time) |
.Release.Namespace |
Namespace being installed into |
.Chart.Name |
Chart name from Chart.yaml |
.Chart.Version |
Chart version |
Common template functions:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# toYaml — convert a value to YAML (with nindent for indentation)
# default — use fallback if value is empty
# quote — wrap in quotes (important for strings that look like numbers)
# if/else
# ingress manifest here
# range — loop over a list
- name:
value:
Lifecycle Commands
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# Install a chart
helm install my-release ./my-app # from local chart
helm install my-release my-repo/my-app # from repo
helm install my-release my-repo/my-app --version 1.2.0 # pin version
# Override values at install time
helm install my-release ./my-app \
--set image.tag=v1.4.2 \
--set replicaCount=5 \
-f prod-values.yaml # -f takes precedence over --set
# Upgrade an existing release
helm upgrade my-release ./my-app -f prod-values.yaml
# Install or upgrade in one command (idempotent — good for CI/CD)
helm upgrade --install my-release ./my-app -f prod-values.yaml
# Roll back to a previous revision
helm rollback my-release 2 # roll back to revision 2
helm rollback my-release 0 # roll back to previous revision
# List releases
helm list -n production
helm list --all-namespaces
# Check release status
helm status my-release -n production
# Uninstall a release
helm uninstall my-release -n production
# Preview rendered YAML without installing
helm template my-release ./my-app -f prod-values.yaml
# Dry run — validate against the cluster
helm install my-release ./my-app --dry-run
The Release Model — How Helm Tracks State
When you install a chart, Helm creates a release — a named instance of a chart with specific values. Each helm upgrade creates a new revision of that release.
Helm stores release state as Secrets in the same namespace as the release:
1
2
3
4
kubectl get secrets -n production | grep helm
# sh.helm.release.v1.my-release.v1
# sh.helm.release.v1.my-release.v2
# sh.helm.release.v1.my-release.v3
Each secret contains the full rendered manifest for that revision, compressed and base64-encoded. This is how helm rollback works — it retrieves the old rendered manifest and re-applies it.
Important implication: if someone modifies a Helm-managed resource with kubectl edit or kubectl apply, Helm doesn’t know about it. The next helm upgrade will overwrite the manual change. Never manually edit resources managed by Helm.
graph LR
chart["Chart + values.yaml"]
override["prod-values.yaml\n--set flags"]
render["helm template\n(rendering engine)"]
k8s["Kubernetes API"]
secret["Release Secret\n(state stored here)"]
chart --> render
override --> render
render -->|"kubectl apply"| k8s
render -->|"store revision"| secret
Values Override Order
When multiple value sources are provided, later sources win:
1
2
3
4
5
6
7
values.yaml (lowest priority)
↓
-f values-base.yaml
↓
-f prod-values.yaml
↓
--set image.tag=abc123 (highest priority)
This allows a layered approach: default values in the chart, environment overrides in a values file, one-off overrides via --set in CI.
Helm Hooks — Running Tasks at Release Lifecycle Points
Hooks let you run Jobs at specific points in the release lifecycle. The most common use case is database migrations before a new version goes live.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# templates/migration-job.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: -migration
annotations:
"helm.sh/hook": pre-upgrade # run before upgrade
"helm.sh/hook-weight": "0" # order among multiple hooks
"helm.sh/hook-delete-policy": before-hook-creation # clean up old job first
spec:
template:
spec:
restartPolicy: Never
containers:
- name: migrate
image: ":"
command: ["./migrate.sh"]
Hook types:
| Hook | When it runs |
|---|---|
pre-install |
Before any resources are created on first install |
post-install |
After all resources are created on first install |
pre-upgrade |
Before upgrade resources are applied |
post-upgrade |
After upgrade completes |
pre-rollback |
Before rollback |
post-rollback |
After rollback |
pre-delete |
Before uninstall |
Hooks are Jobs — they must complete successfully for the hook phase to pass. If a pre-upgrade hook fails, the upgrade is aborted.
Kustomize vs Helm — When to Use Each
| Kustomize | Helm | |
|---|---|---|
| Templating | None — patches only | Go templates |
| Distribution | Not designed for it | Core use case — Helm Hub, OCI registries |
| Lifecycle management | None | Install, upgrade, rollback, uninstall |
| Complexity | Low — just YAML | Higher — templating language to learn |
| GitOps fit | Excellent | Good (with ArgoCD/Flux Helm support) |
| Customizing third-party apps | Awkward | Natural — override values.yaml |
| Kubernetes-native | Yes (kubectl apply -k) |
No — separate CLI |
The Combined Pattern
In practice, many teams use both together:
- Helm to install and manage third-party applications (Prometheus, cert-manager, ArgoCD, ingress-nginx)
- Kustomize to manage your own application manifests and handle environment-specific overlays
A common GitOps pattern:
1
2
3
4
5
6
7
8
9
10
11
apps/
├── base/
│ └── kustomization.yaml # your app's base manifests
├── overlays/
│ ├── dev/
│ └── prod/
infra/
├── monitoring/
│ └── values-prod.yaml # Helm values for Prometheus stack
├── ingress/
│ └── values-prod.yaml # Helm values for ingress-nginx
Helm manages the infrastructure layer. Kustomize manages your application layer. ArgoCD or Flux syncs both.
Interview Gotchas
1. Helm release stuck in pending-upgrade
This happens when a previous helm upgrade was interrupted (CI job killed, network failure). Helm locked the release but never unlocked it.
1
2
helm list -n production # shows STATUS: pending-upgrade
helm rollback my-release -n production # rolls back AND clears the lock
If rollback doesn’t work:
1
2
3
# Last resort — manually delete the stuck release secret
kubectl get secrets -n production | grep helm | grep pending
kubectl delete secret sh.helm.release.v1.my-release.vN -n production
2. helm upgrade overwrites manual kubectl changes
Helm manages resources by re-applying its rendered manifests on every upgrade. Any change made with kubectl edit or kubectl apply outside Helm will be overwritten on the next upgrade. Always make changes through values or chart updates — never directly on Helm-managed resources.
3. Values override order confusion
--set always wins over -f. Multiple -f flags are applied left to right — the last one wins. A common mistake is passing the environment values file before the base values file and wondering why the base values take precedence.
1
2
3
4
5
# WRONG — base-values.yaml overrides prod-values.yaml
helm upgrade my-release ./chart -f prod-values.yaml -f base-values.yaml
# CORRECT — prod-values.yaml wins
helm upgrade my-release ./chart -f base-values.yaml -f prod-values.yaml
4. Kustomize patch targeting wrong resource
If your patch’s metadata.name doesn’t exactly match the resource in the base, Kustomize silently does nothing — it doesn’t error. Always verify with kustomize build and check the rendered output.
1
kustomize build overlays/prod/ | grep -A 5 "kind: Deployment"
5. helm template vs --dry-run — they are different
helm template renders manifests locally without contacting the cluster. --dry-run sends the rendered manifests to the API server for validation but doesn’t apply them. Use --dry-run to catch schema errors; use helm template for inspecting output in CI pipelines.
6. Helm stores state in Secrets — don’t delete them
The Secrets that Helm creates (sh.helm.release.v1.*) are not just logs — they are the release state. Deleting them orphans all the resources Helm deployed. Helm will think the release doesn’t exist and create duplicates on the next install. If you need to clean up, always use helm uninstall.
